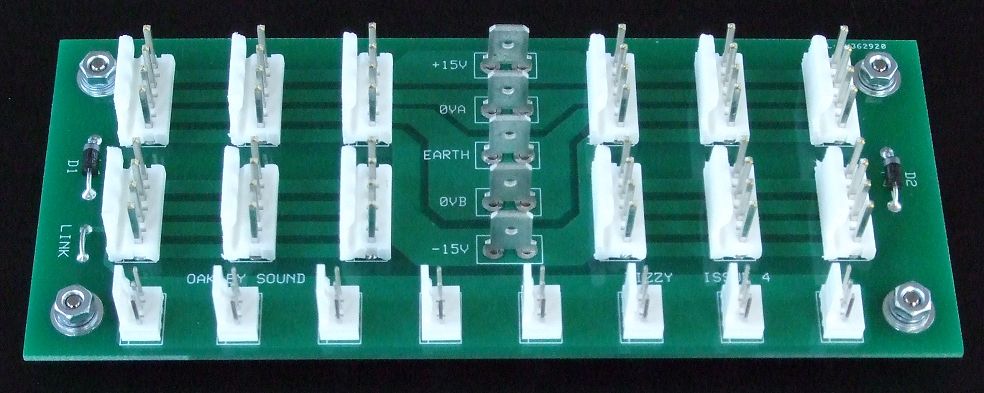

The issue 4 Dizzy board. 1/4″ (6.35mm)
Faston blade terminals provide for easy and reliable connections
to the master power supply.
This is a MOTM/Oakley power distribution
board supporting twelve 4-way 0.156″ (3.96mm) MTA/Molex
headers and four 1/4″ (6.35mm) Faston blade terminals for
power entry. An optional ‘earth’ terminal is provided for
additional grounding options.
Also included in the design are eight 0.1″
headers that can be fitted to connect to the Oakley Bus. The
Oakley Bus can carry Key CV and gate signals to suitably equipped
modules, like the Oakley VCO, VRG, ADSR, etc.
The double sided circuit board is 5.6″
(142mm) long by 2.35″ (60mm) wide. It is designed to go at
the rear of 19″ rack units or built into the bottom panel of
wooden modular cases. Each row of three headers is ‘star wired’
back to the blade terminals to ensure to lowest possible
resistance and unwanted interaction between connected modules.
Project Downloads
Construction
Guide Our handy guide to building
Oakley DIY projects
Parts
Guide Our handy guide to buying
parts for Oakley DIY projects

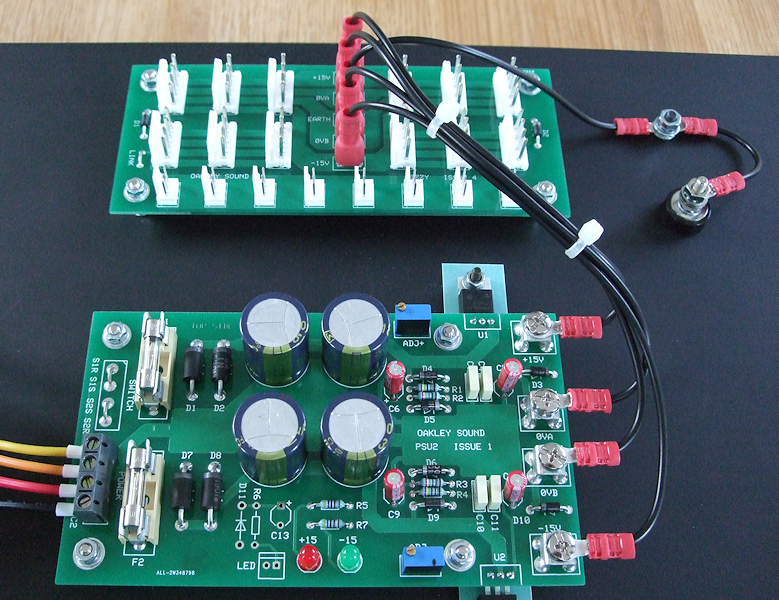

A single Dizzy board powered by an Oakley
PSU2 module. Note the grounding bond and 4mm socket to the right
of the Dizzy board.
